2.  Introduction:

Aging Equipment is used to perform aging tests on lithium-ion battery packs, simulating the working conditions of the batteries in actual use. Through long-term charge-discharge cycling and temperature changes, it tests the reliability, stability, and lifespan of the battery packs. The main equipment includes the Battery Aging Cabinet and the Temperature Cycling Chamber.

The Battery Aging Cabinet provides stable temperature and humidity conditions to perform charge-discharge cycling tests on the battery packs, evaluating their performance degradation.
The Temperature Cycling Chamber simulates the periodic changes in ambient temperature, conducting high-low temperature cycling tests on the battery packs to evaluate their thermal performance and stress resistance.

These devices play an important role in the quality control and R&D testing of lithium-ion batteries, helping companies improve the reliability and competitiveness of their products.

3. Process Flow:

• Battery Pack Preparation

• Test Plan Formulation

• Test Equipment Preparation

• Battery Pack Loading

• Test Startup

• Data Recording and Analysis

• Test Completion

• Result Judgment and Reporting

• Product Handling

4. Technical Specifications:

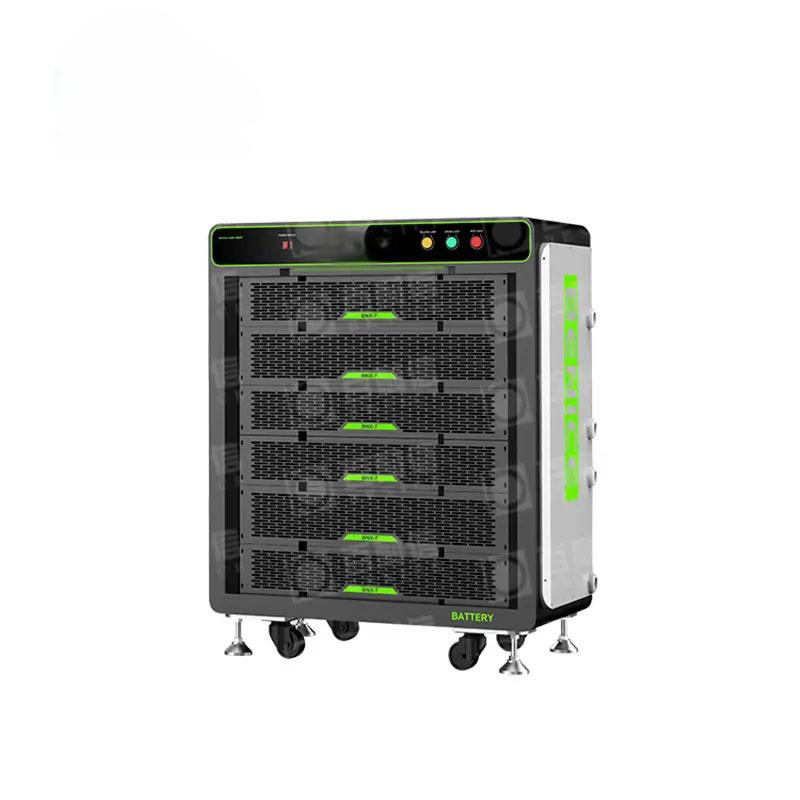

Battery Aging Cabinet:

• Number of Channels: 64-256 channels
• Voltage Range: 0-100V
• Current Range: Charge 0.1-100A, Discharge 0.1-100A
• Temperature Control Range: Room temperature-80°C
• Data Storage: ≥1TB
• Safety Protection: Overvoltage, overcurrent, overtemperature, short circuit, reverse connection

Temperature Cycling Chamber:

• Temperature Range: -70°C-180°C
• Temperature Fluctuation: ±0.5°C
• Temperature Uniformity: ±2°C
• Heating/Cooling Rate: Heating 1-10°C/min, Cooling 0.7-10°C/min
• Work Space Size: 500L, 1000L, 1500L, etc.
• Safety Protection: Overtemperature, leakage, phase loss, overload

5. Technical Features:

Battery Aging Cabinet:

• High-Precision Control
• Multi-Channel Independent Control
• Comprehensive Safety Protection
• Intelligent Data Management
• Controllable Environmental Conditions
• High Reliability and Stability

Temperature Cycling Chamber:

• Wide Temperature Range
• Rapid Temperature Changes
• Precise Temperature Control
• Programmable Control
• Safety Protection
• User-Friendly Design

6. Application:

• Lithium-ion Battery PACK Production Line
• Battery R&D and Testing Institutions
• Other Application Fields
