1. Keywords:

Battery Pack Comprehensive Test System

Software Loading and Debugging Equipment

EOL (End of Line) Test Equipment

Battery Pack Functional Test

Battery Pack Comprehensive Test System

Software Loading Equipment

Battery Pack Debugging Platform

Electrical Performance Test Instrument

Battery Pack Communication Test

Battery Pack Safety Test

End-of-Line Test Equipment

2. Introduction:

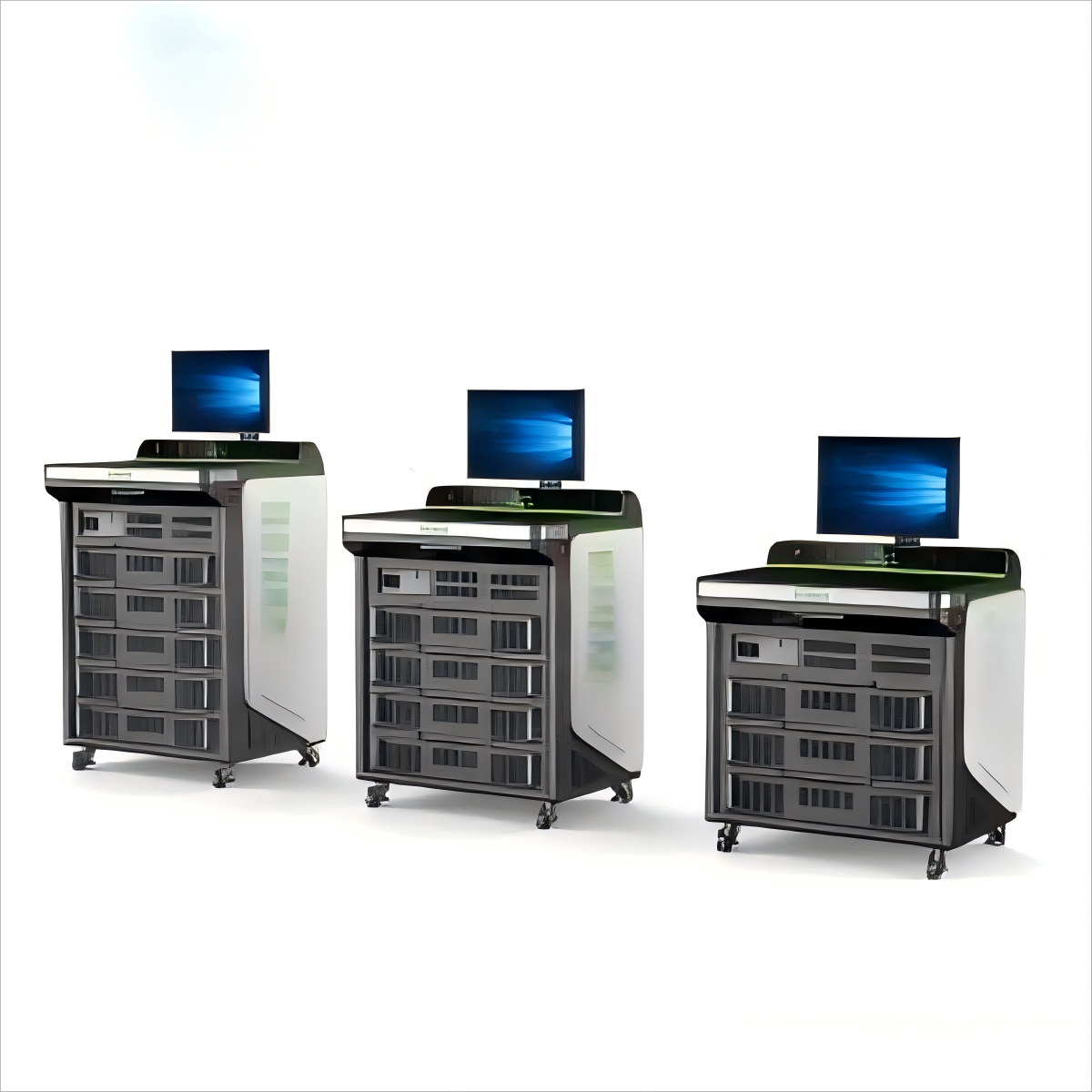

EOL (End of Line) Test Equipment is the final process in a lithium-ion battery PACK production line, used to perform comprehensive functional tests on the assembled battery packs to ensure the quality and performance of the products meet the requirements. The main test contents include electrical performance test, communication test, safety test, software loading, and debugging. The Battery Pack Comprehensive Test System can perform comprehensive tests on the critical performance parameters of the battery pack, and the Software Loading and Debugging Equipment is used to load the necessary software and firmware into the Battery Management System (BMS) and perform debugging and verification.

3. Process Flow:

• Battery Pack Preparation

• Connection to Test Equipment

• Software Loading and Debugging

• Battery Pack Comprehensive Test

• Test Data Recording and Analysis

• Fault Handling

• Product Unloading

4. Technical Specifications:

Battery Pack Comprehensive Test System:

• Voltage Measurement Range: 0-1000V, ±0.05% FS
• Current Measurement Range: 0-1000A, ±0.1% FS
• Resistance Measurement Range: 0.1-1000mΩ, ±0.5% FS
• Communication Protocols: CAN, CAN FD, LIN, Ethernet, etc.
• Data Storage: ≥1TB
• Display and Control: Industrial PC, ≥15-inch touchscreen
• Power Supply: AC 380V, 50Hz, 10-200kW

Software Loading and Debugging Equipment:

• Supported Devices: BMS, VCU, MCU, etc.
• Software Loading Methods: JTAG, UART, CAN, Ethernet, etc.
• Software Loading Speed: High-speed batch programming
• Parameter Configuration and Debugging: Online parameter setting, real-time monitoring
• Software System: Integrated with mainstream development environments, user-friendly interface

5. Technical Features:

Battery Pack Comprehensive Test System:

• High Precision and Reliability
• Multi-Functional Integration
• Automation and Intelligence
• Ease of Use and Ergonomic Design
• Data Management and Traceability
• Safety Protection

Software Loading and Debugging Equipment:

• Strong Compatibility
• High Speed and Efficiency
• Comprehensive Functions
• Data Management and Version Control
• Security

6. Application:

• Lithium-ion Battery PACK Production
• Battery Manufacturers
• Battery R&D and Testing Institutions
• Other Application Fields
