Lithium Battery Electrode Cutting Equipment

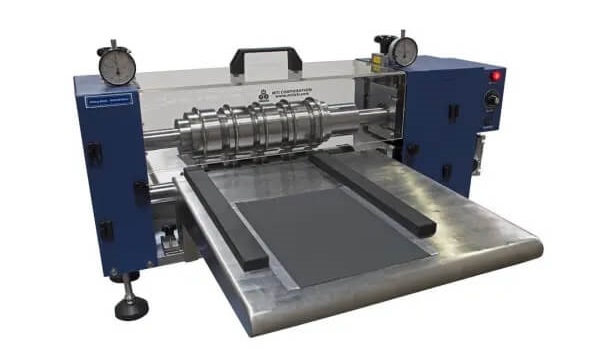

Electrode Sheet Cutting Machine

2: Introduction:

The electrode cutting machine is used to precisely cut large rolls of electrode material into specific sizes suitable for cell assembly. The machine uses automated, high-speed precision cutting technology to ensure smooth, burr-free edges on the electrodes. The cut electrode sheets are then used in subsequent winding or stacking processes.

3: Process Flow:

1. Electrode Material Feeding: Large rolls of electrode material are fed into the machine through an automatic feeding system.

2. Precision Cutting: The machine cuts the electrode material according to preset dimensions with high accuracy.

3. Product Output: The cut electrode sheets are automatically discharged for the next process.




4: Technical Specifications:

• Cutting Width: 100 mm - 600 mm

• Cutting Speed: 60 cuts/min - 120 cuts/min

• Cutting Precision: ±0.1 mm

• Applicable Material Thickness: 30 μm - 200 μm

• Power Consumption: 3 kW - 8 kW

5:Technical Features:

• High-Precision Cutting: Uses a servo-driven system to ensure cutting accuracy.

• High-Speed Operation: Capable of up to 120 cuts per minute, ideal for mass production.

• Automated Operation: Equipped with a touchscreen control panel and automatic feeding system, reducing manual intervention.

• Smooth Edges: Ensures smooth, burr-free edges on the cut electrode sheets, improving the quality of subsequent processes.

6: Application:

• Lithium-ion Battery Electrode Manufacturing

• Power Battery Production

• Energy Storage Battery Production
