1: Keywords:

Planetary Mixer

High Viscosity Slurry Mixing Equipment

Lithium Battery Slurry Planetary Mixer

Electrode Material Preparation Mixer

High Precision Mixing Equipment

2: Introduction:

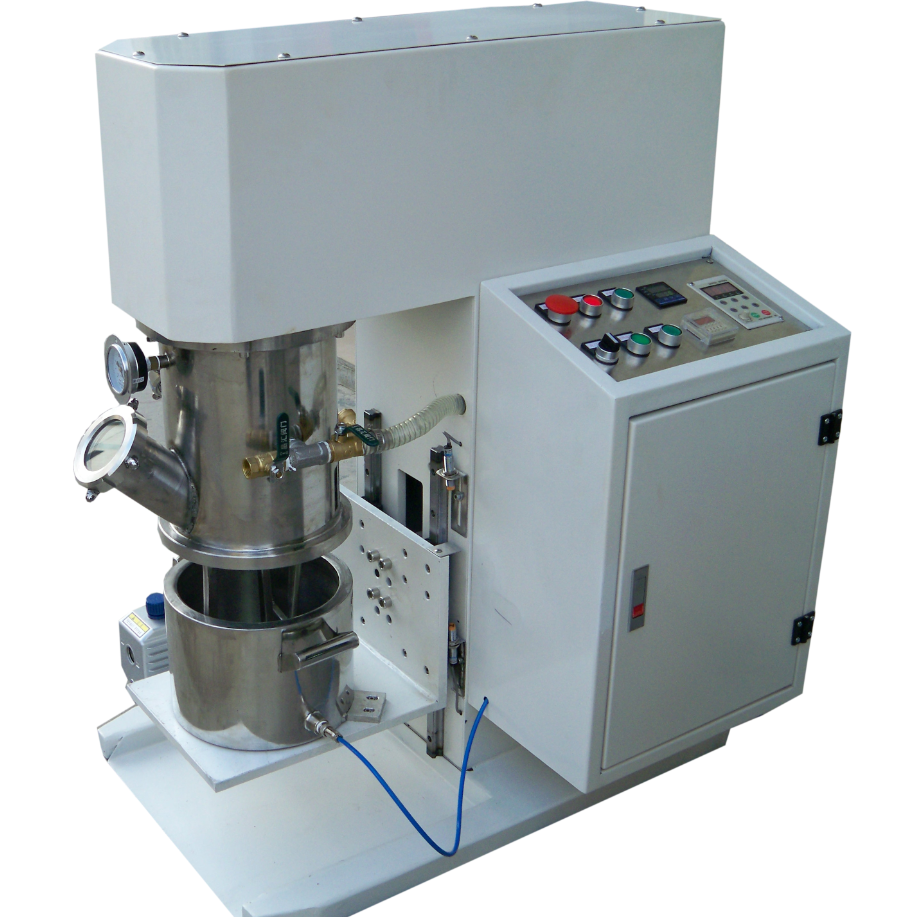

The planetary mixer is a highly efficient mixing equipment used for preparing cathode and anode slurries for lithium-ion batteries. Its unique planetary mixing mechanism enables the slurry to undergo both revolution and rotation movements within the mixing tank, achieving uniform mixing and dispersion of high-viscosity and high-solid-content slurries. This equipment is widely used in the lithium battery industry, particularly in production processes that require high viscosity, uniformity, and stability of the slurry.

3: Process Flow:

1. Raw Material Feeding: Active materials, conductive agents, binders, and solvents are added into the mixing tank according to the formula ratio.

2. Start Mixing: The planetary mixer is started, and the agitator begins to revolve and rotate.

3. Mixing: During the mixing process, the slurry undergoes multiple shearing and grinding actions to achieve uniform mixing.

4. Temperature Control: The slurry temperature is controlled through a jacket or cooling system to prevent overheating.

5. Vacuum Deaeration (Optional): Mixing is performed under vacuum conditions to remove bubbles from the slurry.

6. Mixing Completion: Mixing is stopped once the predetermined time or viscosity is reached.

7. Discharge: The prepared slurry is discharged for subsequent coating processes.

8. Technical Parameters:

9. Capacity Range: 5 liters - 1000 liters (customizable)

10. Mixing Speed: 0 - 300 rpm (revolution), 0 - 600 rpm (rotation)

11. Viscosity Range: 1000 - 1,000,000 cps

12. Temperature Range: Room temperature - 200°C (optional heating or cooling system)

13. Vacuum Degree: -0.098 MPa (optional vacuum system)

14. Power Requirements: AC 380V, 50Hz

15. Material: Stainless Steel 304 or 316L

 .

4: Technical Features:

• High Mixing Efficiency: Planetary motion trajectory ensures dead-zone-free mixing of the slurry within the tank.

• Suitable for High Viscosity Materials: Capable of handling electrode slurries with high solid content and high viscosity.

• Vacuum Mixing: Can operate under vacuum conditions to remove bubbles and improve slurry quality.

• Temperature Control: Equipped with a jacket or temperature control system for precise control of slurry temperature.

• Adjustable Speed: Mixing speed is adjustable to adapt to different process requirements.

• Easy to Clean: Mixing tank and agitator are designed for easy cleaning and maintenance.

5: Application:

• Lithium-ion Battery Industry: Preparation of cathode and anode slurries.

• Electronic Pastes: Used for mixing conductive pastes, silver pastes, and aluminum pastes.

• New Energy Materials: Preparation of slurries for fuel cells and capacitors.

• Chemical Industry: Mixing of high-viscosity coatings, adhesives, and sealants.
