1: Keywords:

Roll press machine, battery material processing

2: Process Flow:

1. Single Auction -> Market Deployment -> Bid Acceptance -> Company Negotiation

2. Single Auction -> Market Deployment -> Inspection -> Mainframe

3: Introduction:

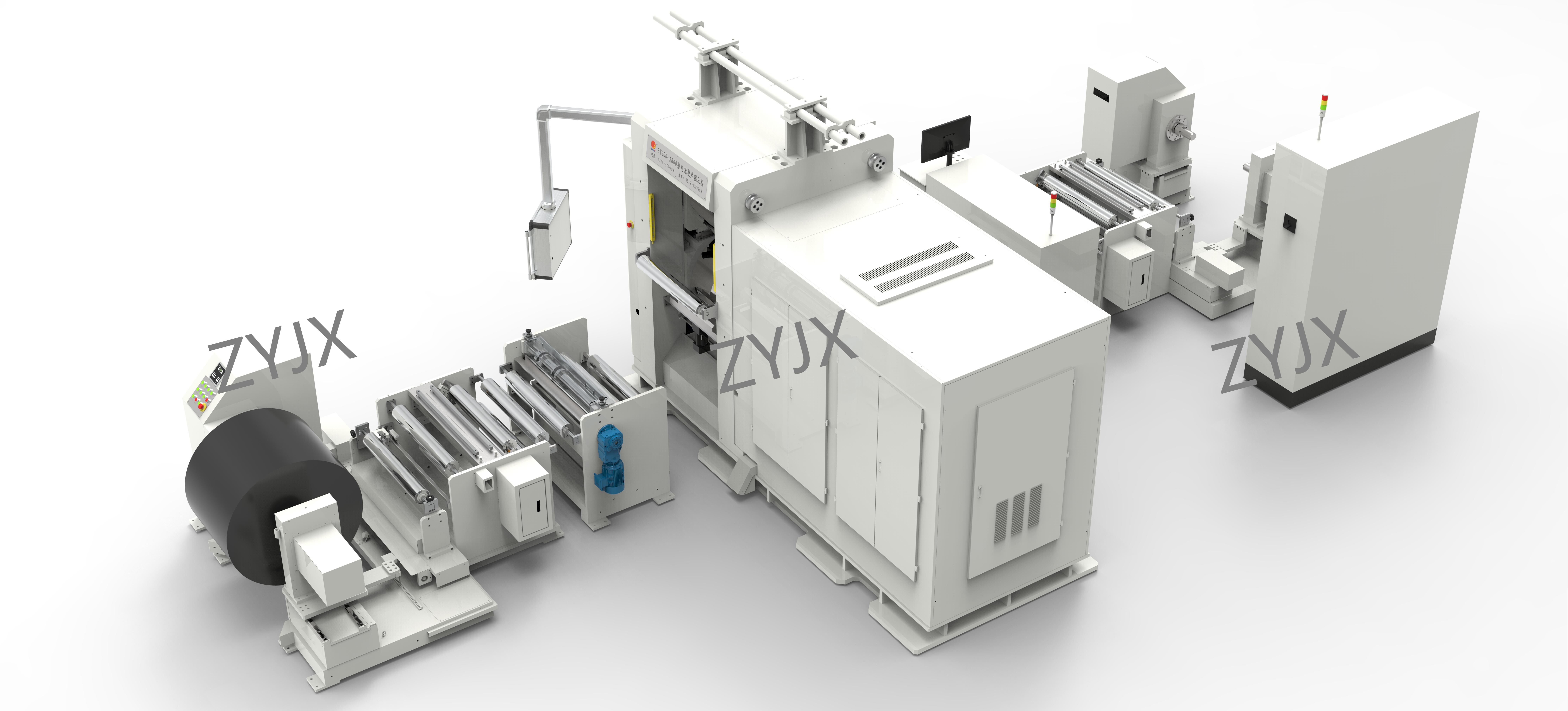

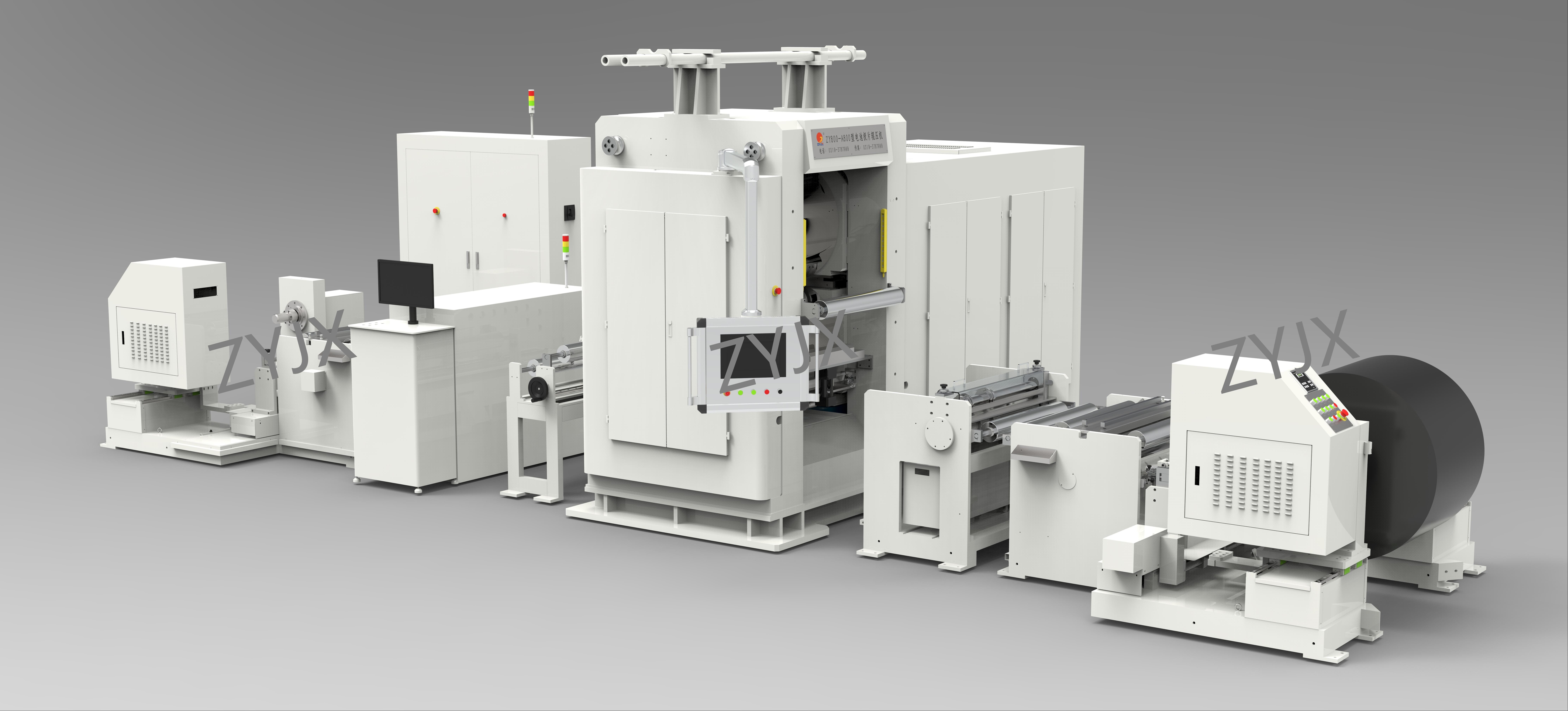

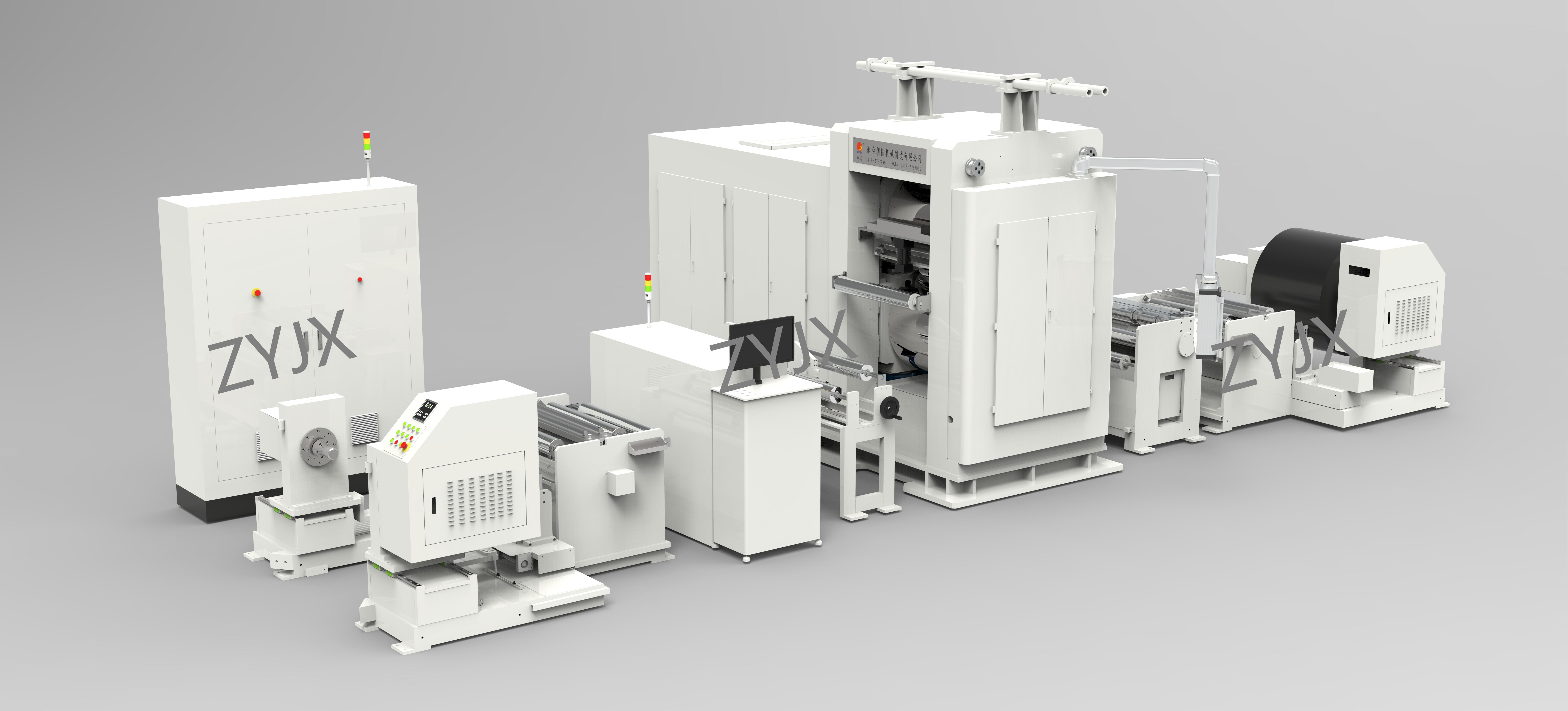

This is a roll pressing equipment used for battery material production, suitable for compacting medium to small width battery materials.

4: Technical specifications:

• Suitable material width: 700mm

• Production speed: 30~100m/min

• Unwinding roll diameter: 600mm~1000mm

• Rewinding roll diameter: 600mm~1000mm

• Roll pressing precision: ±0.002mm

• Unwinding tension control precision: ±5N

• Rolling roll precision: ±0.001mm (cylindricity, straightness, etc.)

5: Technical Features:

• High-precision roll pressing.

• Optional pressure closed-loop and roll gap closed-loop control.

• Unwinding with speed closed-loop and tension closed-loop control.

• Special surface treatment for rolling rolls (chrome-plated or tungsten carbide).

6: Application:

Battery material production (can be used for positive or negative electrode materials).
