1: Keywords:

Brush roll, shower, clean roll surface, dust particles, brush cloth, nozzle, pressing cylinder, parameter adjustment.

2: Introduction:

This device is used to actively remove dust particles adhered to the roll surface, keeping the roll surface clean.

3: Techinical Specifications:

• Adjustable brush cloth speed.

• Adjustable liquid spray interval time.

• Adjustable liquid spray flow rate.

4: Technical Features:

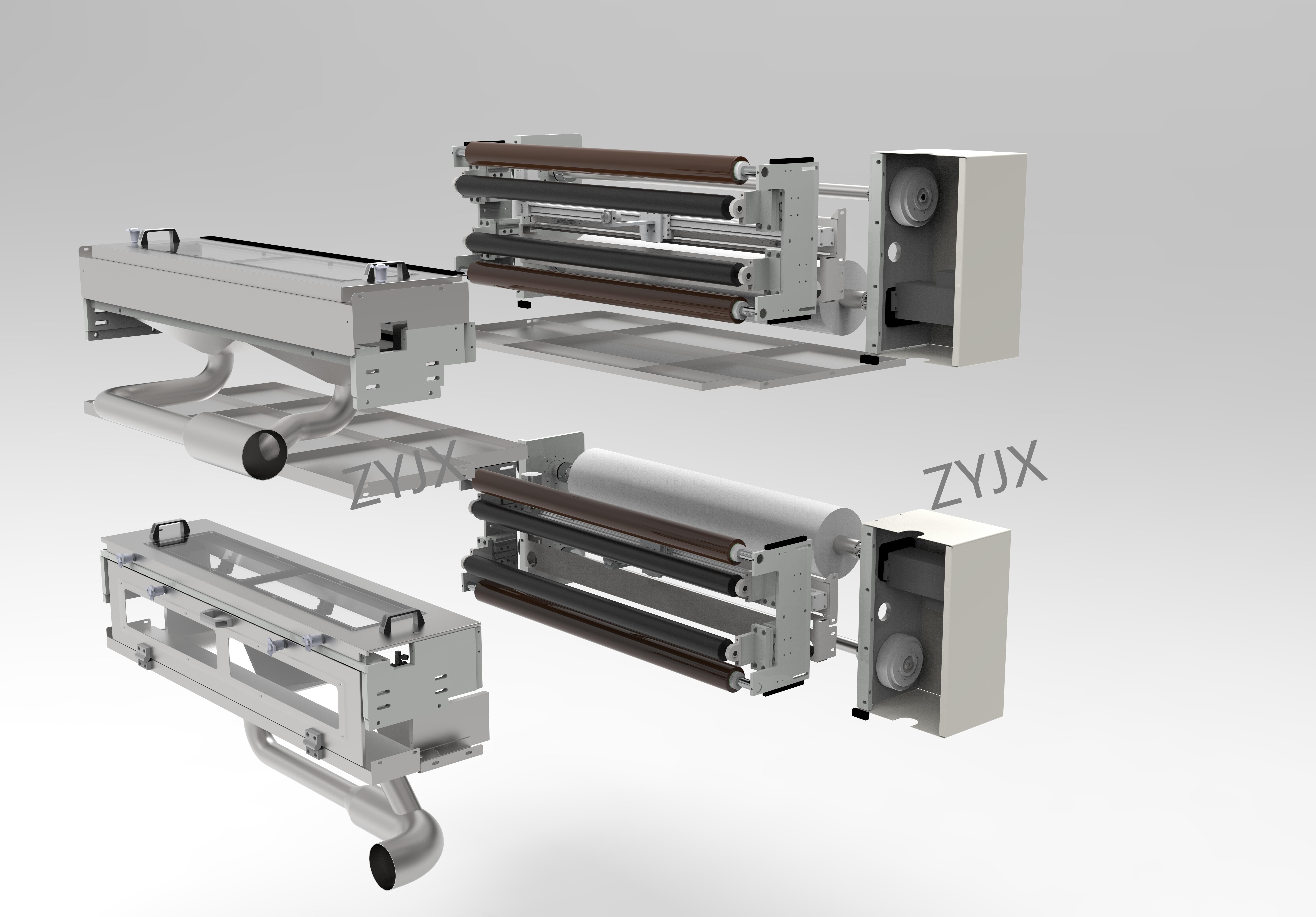

• Composed of a pay-off shaft, take-up shaft, magnetic powder brake, reduction motor, pressing cylinder, pressing rubber roll, brush cloth roll, nozzle, and rodless cylinder.

• The reduction motor drives the brush cloth from the pay-off shaft to slowly brush over the contact area between the pressing rubber roll and the roll surface.

• The pressing cylinder presses the brush cloth against the roll surface.

• The nozzle, controlled by an electromagnetic valve, can quantitatively spray liquid onto the brush cloth.

• With the rotation of the rolling mill and the slow reverse movement of the brush cloth, the entire roll surface is cleaned.

• The brush cloth speed, liquid spray interval time, and flow rate can be adjusted online according to the on-site usage conditions and roll surface cleanliness.

5: Application:

Used for cleaning the roll surface of a rolling mill.
