1: Keywords:

Wafer pre-cutting, adjustable knife holder, cutting width, knife outer diameter, drive system, pressure sensor, micrometer detection, lateral fine adjustment, knife cleaning system.

2: Technical Parameters:

• Knife holder length: 500~1700mm.

• Cutting width: 150~800mm.

• Knife outer diameter: 130mm.

• Drive system speed: 20~150m/min.

• Upper and lower knife pressure sensor.

• Micrometer detection accuracy: 0.002~0.02mm.

• Lateral fine adjustment accuracy: 0.02~0.05mm.

• Knife cleaning system.

3: Technical Features:

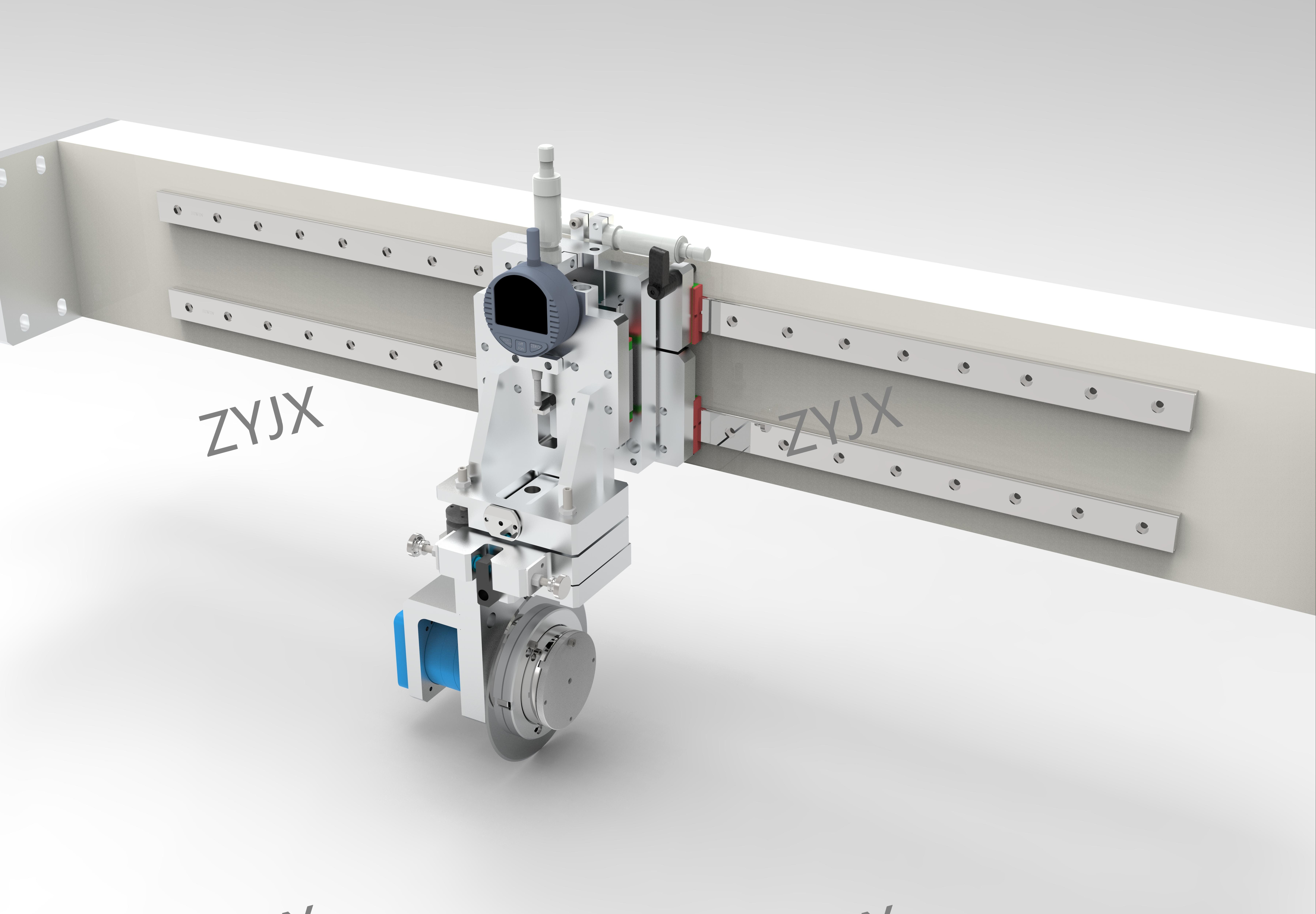

• Adaptable knife holder length 500-1700mm, cutting width 150-800mm.

• Knife outer diameter 130mm, equipped with a separate drive system, speed 20~150m/min.

• The knife holder is equipped with an upper and lower knife pressure sensor to detect the contact pressure between the upper and lower knives.

• The knife holder is equipped with an adjustable micrometer detection function, with an accuracy of 0.002~0.02mm.

• The knife holder is equipped with a lateral fine adjustment function, with an accuracy of 0.02~0.05mm.

• Equipped with a knife cleaning system.

4: Application:

Used for wafer pre-cutting.
